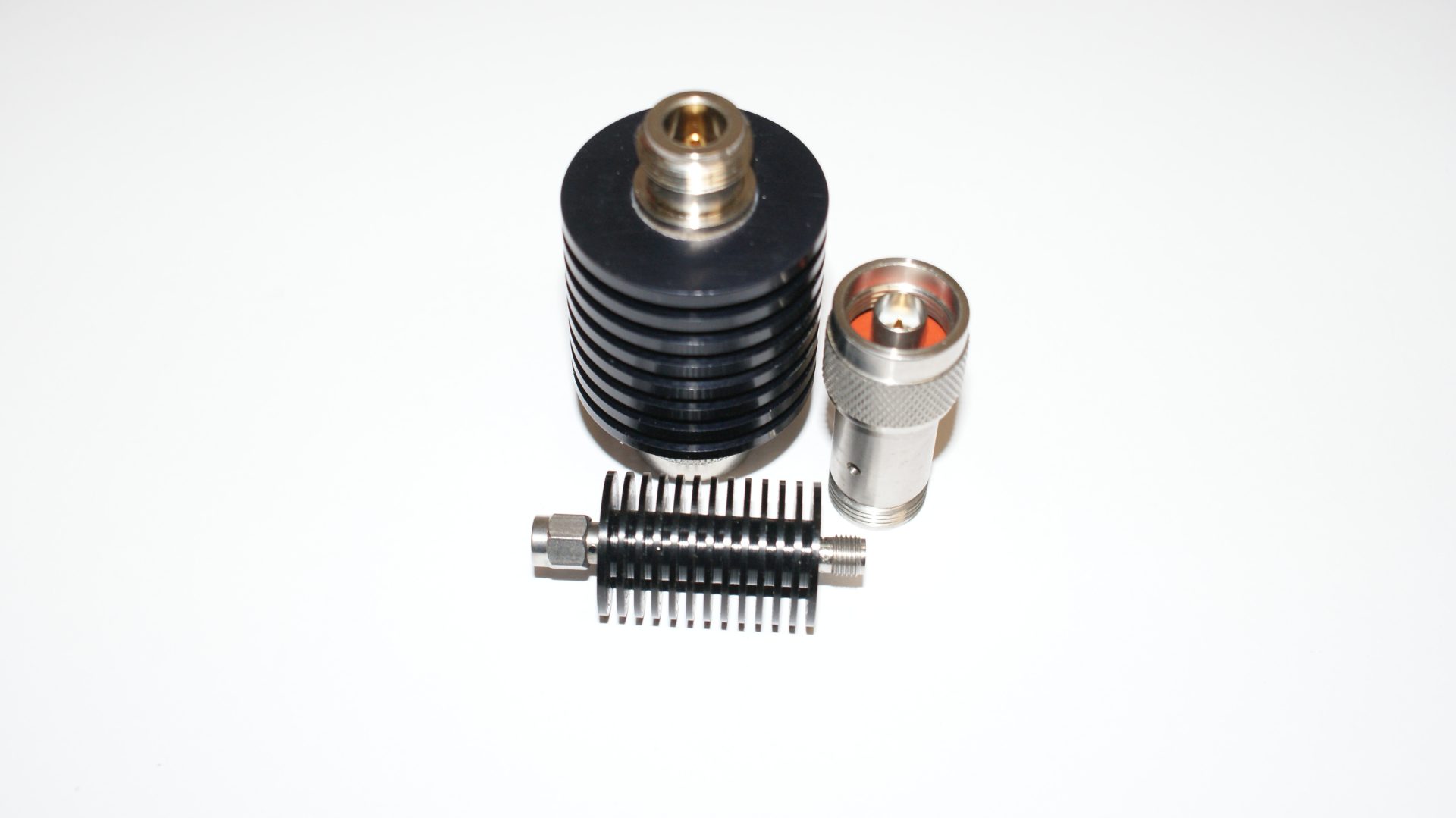

Fixed Coaxial Attenuator
MCLI has a variety of models Fixed Attenuators ranging from 2 watt to 50 watt models in standard dB values of 3db, 6db, 10db, 20db, & 30db attenuators, and specials of up to 60dB for SMA, BNC, TNC, 7/16 DIN, 2.92mm (K) or Type-N. In addition High Power models up to 500 watts. Standard coaxial attenuators are supplied with M/F connectors.
50 Ohms Impedance
Low Passive Intermodulation
Browse all Fixed Coaxial Attenuator
Filters
Attenuator Connector
Max Frequency Range (Ghz)
Power Avg. (W)
VSWR In/Out
Showing all 76 results
| Part # | Connector | Frequency Range (GHz) | VSWR In/Out | Power Avg. (W) | Lead Time | Notes | Action | |
|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||
| FAS-1 | SMA | DC | 4 | 1.15:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-1-2 | SMA | DC | 4 | 1.15:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-5 | SMA | DC | 4 | 1.15:1 | 5 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-14 | SMA | DC | 2.5 | 1.35:1 | 10 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-1-dB | SMA | DC | 4 | 1.15:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-2-dB | SMA | DC | 8 | 1.20:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-3-dB | SMA | DC | 12 | 1.25:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-4-dB | SMA | DC | 18 | 1.35:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-5-dB | SMA | DC | 4 | 1.15:1 | 5 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-6-dB | SMA | DC | 8 | 1.20:1 | 5 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-7-dB | SMA | DC | 12 | 1.25:1 | 5 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-8-dB | SMA | DC | 18 | 1.35:1 | 5 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-9-dB | SMA | DC | 6 | 1.25:1 | 10 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-10-dB | SMA | DC | 12.4 | 1.25:1 | 10 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-11-dB | SMA | DC | 18 | 1.40:1 | 10 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-12-dB | SMA | DC | 26 | 1.50:1 | 2 | 6-8 Weeks | N/A | Request Quote |
| FAS-13-dB | SMA | DC | 4 | 1.20:1 | 10 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-14-dB | SMA | DC | 2 | 1.25:1 | 50 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-15-dB | SMA | DC | 2 | 1.15:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAS-16-dB | 2.92mm (K) | DC | 40 | 1.40:1 | 1 | 6-8 Weeks | K Male to K Female | Request Quote |
| FAS-17-dB | SMA | DC | 8 | 1.30:1 | 10 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-18-dB | SMA | DC | 6 | 1.20:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-20-dB | SMA | DC | 6 | 1.45:1 | 100 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-21-dB | SMA | DC | 18 | 1.40:1 | 25 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-23-dB | 2.92mm (K) | DC | 40 | 1.40:1 | 20 | 6-8 Weeks | K Male to K Female | Request Quote |
| FAS-24-dB | SMA | DC | 18 | 1.35:1 | 50 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-25-dB | SMA | DC | 18 | 1.35:1 | 100 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-27-dB | SMA | DC | 4 | 1.25:1 | 25 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-28-dB | 2.92mm (K) | DC | 40 | 1.40:1 | 0.5 | 6-8 Weeks | K Male to K Female | Request Quote |
| FAN-1-dB | Type N | DC | 2 | 1.20:1 | 10 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-2-dB | Type N | DC | 4 | 1.20:1 | 10 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-4-dB | Type N | DC | 2 | 1.20:1 | 20 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-5-dB | Type N | DC | 4 | 1.20:1 | 20 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-6-dB | Type N | DC | 6 | 1.20:1 | 20 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-7-dB | Type N | DC | 3 | 1.25:1 | 50 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-8-dB | Type N | DC | 5 | 1.25:1 | 50 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-9-dB | Type N | DC | 1.5 | 1.25:1 | 100 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-10-dB | Type N | DC | 2 | 1.25:1 | 150 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-11-dB | Type N | DC | 4 | 1.35:1 | 150 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-12-dB | Type N | DC | 12.4 | 1.30:1 | 10 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-13-dB | Type N | DC | 6 | 1.25:1 | 50 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-14-dB | Type N | DC | 6 | 1.65:1 | 100 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-18-dB | Type N | DC | 18 | 1.35:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAN-19-dB | Type N | DC | 2.5 | 1.15:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAN-20-dB | Type N | DC | 6 | 1.20:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAN-21-dB | Type N | DC | 8 | 1.20:1 | 2 | 6-8 Weeks | Specify dB and Connector Input/Output | Request Quote |
| FAN-22-dB | Type N | DC | 18 | 1.40:1 | 10 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-23-dB | Type N | DC | 18 | 1.40:1 | 20 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-33-dB | Type N | DC | 8 | 1.50:1 | 150 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-34-dB | Type N | DC | 18 | 1.35:1 | 100 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-35-dB | Type N | DC | 6 | 1.20:1 | 10 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-36-dB | Type N | DC | 8.5 | 1.30:1 | 50 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-37-dB | Type N | DC | 18 | 1.35:1 | 50 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAN-41-dB | Type N | DC | 18 | 1.50:1 | 200 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAB-1-X-75 | BNC | DC | 4 | 1.35:1 | 2 | 6-8 Weeks | BNC Male to BNC Female | Request Quote |
| FAB-500-10 | BNC | DC | 0.5 | 1.20:1 | 20 | 6-8 Weeks | BNC Male to BNC Female | Request Quote |
| FAB-500-20 | BNC | DC | 0.5 | 1.20:1 | 20 | 6-8 Weeks | BNC Male to BNC Female | Request Quote |
| FAD-3-50-X | 7/16 DIN | DC | 3 | 1.15:1 | 50 | 6-8 Weeks | 7/16 Male to 7/16 Female | Request Quote |
| FAD-3-100-X | 7/16 DIN | DC | 3 | 1.35:1 | 100 | 6-8 Weeks | 7/16 Male to 7/16 Female | Request Quote |
| FAD-3-200-X | 7/16 DIN | DC | 3 | 1.35:1 | 200 | 6-8 Weeks | 7/16 Male to 7/16 Female | Request Quote |
| FAD-4-25-X | 7/16 DIN | DC | 4 | 1.25:1 | 25 | 6-8 Weeks | 7/16 Male to 7/16 Female | Request Quote |
| FAD-8-5-X | 7/16 DIN | DC | 8 | 1.40:1 | 5 | 6-8 Weeks | 7/16 Male to 7/16 Female | Request Quote |
| FAS-dB-FM | SMA | DC | 3 | 1.20:1 | 1 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAB-dB-MF | BNC | DC | 2 | 1.20:1 | 1 | 6-8 Weeks | BNC Male to BNC Female | Request Quote |
| FAN-dB-MF | Type N | DC | 3 | 1.20:1 | 1 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
| FAT-3-X | TNC | DC | 3 | 1.20:1 | 1 | 6-8 Weeks | TNC Male to TNC Female | Request Quote |
| FAT-dB-MF | TNC | DC | 2 | 1.20:1 | 1 | 6-8 Weeks | TNC Male to TNC Female | Request Quote |
| FAS-12-X | SMA | DC | 26.5 | 1.50:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-12-6 | SMA | DC | 26.5 | 1.50:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-12-12 | SMA | DC | 26.5 | 1.50:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-12-15 | SMA | DC | 26.5 | 1.50:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-12-20 | SMA | DC | 26.5 | 1.50:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-12-30 | SMA | DC | 26.5 | 1.50:1 | 2 | 6-8 Weeks | SMA Male to SMA Female | Request Quote |
| FAS-16-6 | 2.92mm (K) | DC | 40 | 1.40:1 | 1 | 6-8 Weeks | K Male to K Female | Request Quote |
| FAS-16-8 | 2.92mm (K) | DC | 40 | 1.40:1 | 1 | 6-8 Weeks | K Male to K Female | Request Quote |
| FAN-24-dB | Type N | DC | 18 | 1.45:1 | 50 | 6-8 Weeks | Type N Male to Type N Female | Request Quote |
