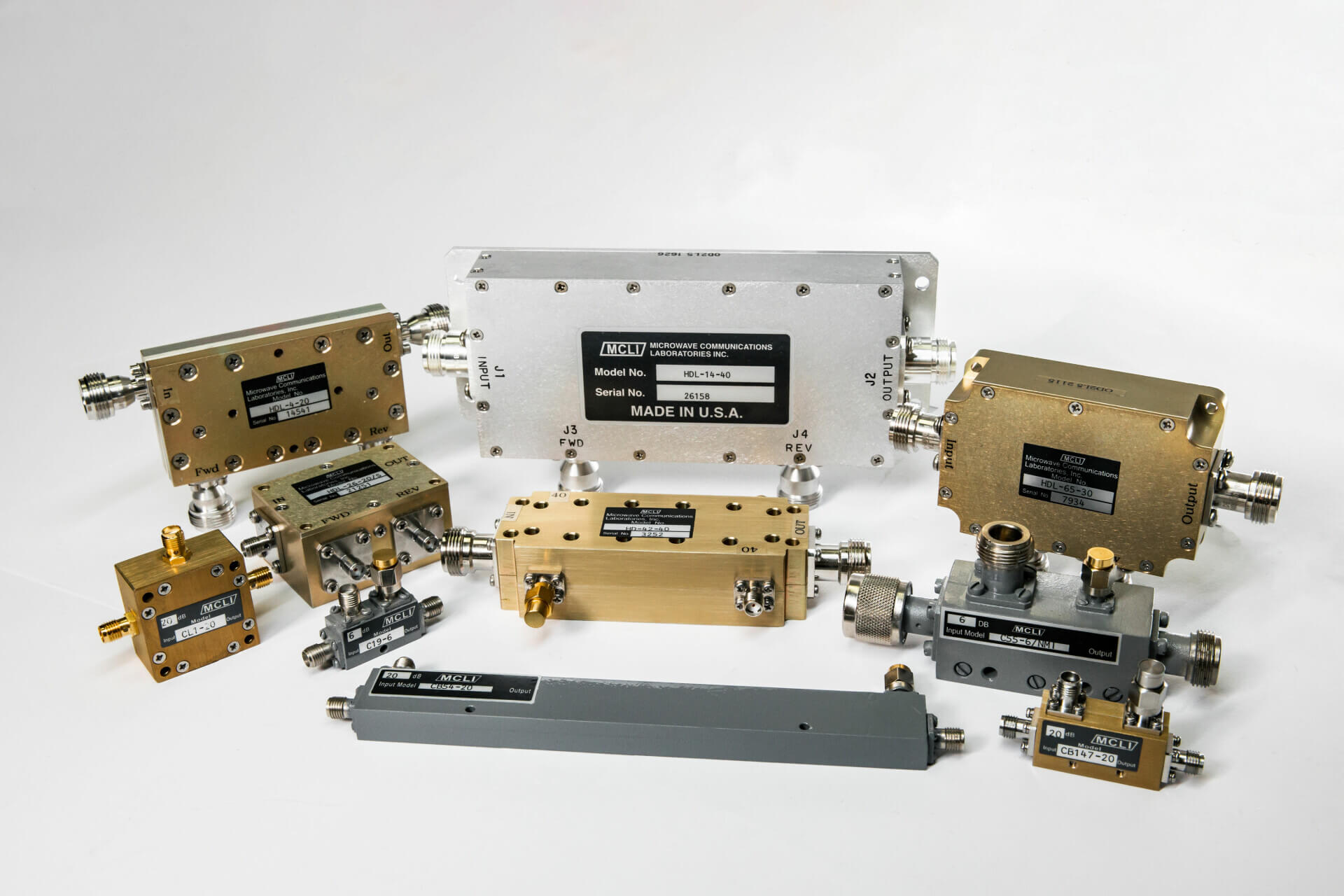

Directional Couplers
MCLI couplers are specifically developed for system applications that require external leveling, accurate monitoring, signal mixing, or swept transmission and reflection measurements. For various applications, including as electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measuring, antenna beam shaping, and EMC testing conditions, these couplers offer straightforward solutions.
Octave Band, Special Band, Multi Band and Ultra Wide-Band Models Available
Low VSWR, High Directivity, and Solid Build Construction
Many In-Stock Models and Custom Designs Available
Browse by category
Browse all Directional Couplers
Filters
Connector Series
Frequency Range Min (GHz)
Frequency Range Max (GHz)
Insertion Loss (dB)
Directivity (dB)
VSWR
Power Avg.
Coupling
Showing 1–100 of 872 results
| Part # | Frequency Range (GHz) | Insertion Loss (dB) | Directivity (dB) | Coupling (dB) | VSWR | Power Avg. (W) | Lead Time | Action | |
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| HDL-24-6 | 0.1 | 1.0 | 0.35 | 20 | 6 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HCL-1-20 | 0.001 | 0.5 | 1.2 | 20 | 20 | 1.20:1 | 30 | 9-10 Weeks | Request a Quote |
| HDL-41-6 | 0.2 | 2.0 | 0.25 | 20 | 6 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HCL-2-6 | 0.002 | 0.05 | 0.2 | 20 | 6 | 1.15:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-53-6 | 0.3 | 3.0 | 0.35 | 15 | 6 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HCL-3-20 | 0.002 | 2.0 | 1.75 | 20 | 20±1.0 | 1.20:1 | 20 | 9-10 Weeks | Request a Quote |
| HDL-64-6 | 0.7 | 2.5 | 0.35 | 15 | 6±1.0 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HCL-3-20-S | 0.002 | 2.0 | 1.75 | 20 | 20±1.0 | 1.25:1 | 20 | 9-10 Weeks | Request a Quote |
| HDL-12-10 | 0.02 | 0.18 | 1.0 | 20 | 10 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HCL-4-6 | 0.03 | 0.088 | 0.3 | 20 | 6 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HCL-5-6 | 0.03 | 0.09 | 0.2 | 20 | 6 | 1.30:1 | 400 | 9-10 Weeks | Request a Quote |
| HCL-6-20 | 0.03 | 2.8 | 2.25 | 20 | 20 | 1.35:1 | 20 | 9-10 Weeks | Request a Quote |
| HCL-7-20 | 0.002 | 2.0 | 1.75 | 20 | 20±1.0 | 1.25:1 | 25 | 9-10 Weeks | Request a Quote |
| HCL-8-20 | 0.225 | 4.0 | 0.4 | 20 | 20±1.0 | 1.30:1 | 500 | 9-10 Weeks | Request a Quote |
| HCL-9-30 | 0.85 | 0.96 | 0.2 | 30 | 30±0.75 | 1.15:1 | 500 | 9-10 Weeks | Request a Quote |
| HCL-10-10 | 1.0 | 8.0 | 1.8 | 12 | 10.5±1.5 | 1.35:1 | 25 | 9-10 Weeks | Request a Quote |
| HCL-11-16 | 1.0 | 7.8 | 1.0 | 18 | 16.8±1.5 | 1.30:1 | 25 | 9-10 Weeks | Request a Quote |
| HCL-11-20 | 1.0 | 7.8 | 0.75 | 20 | 20.5±2.0 | 1.40:1 | 25 | 9-10 Weeks | Request a Quote |
| HDL-10-3 | 0.0015 | 0.08 | 0.2 | 25 | 3 | 1.10:1 | 750 | 9-10 Weeks | Request a Quote |
| HDL-23-6 | 0.06 | 0.6 | 0.35 | 20 | 6 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-26-20 | 0.02 | 0.55 | 0.7 | 20 | 20 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-26-20/S | 0.02 | 0.55 | 0.7 | 20 | 20 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-33-20/200 | 0.2 | 6.0 | 1.0 | 14 | 20 | 1.40:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-37-20 | 0.7 | 4.2 | 0.35 | 18 | 20 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-38-20 | 2.0 | 6.0 | 0.4 | 15 | 20 | 1.35:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-23-10 | 0.06 | 0.6 | 0.35 | 20 | 10 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-41-20 | 0.2 | 2.0 | 0.25 | 18 | 20 | 1.25:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-24-10 | 0.1 | 1.0 | 0.3 | 20 | 10 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-52-20 | 0.3 | 3.0 | 0.35 | 15 | 20 | 1.20:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-26-10 | 0.03 | 0.512 | 0.5 | 13 | 20±1.0 | 1.30:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-53-20 | 1.8 | 6.1 | 0.4 | 18 | 20±1.0 | 1.25:1 | 60 | 9-10 Weeks | Request a Quote |
| HDL-41-10 | 0.2 | 2.0 | 0.3 | 20 | 10 | 1.25:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-58-20 | 0.001 | 0.5 | 1.2 | 20 | 20±1.0 | 1.20:1 | 30 | 9-10 Weeks | Request a Quote |
| HDL-52-10 | 0.3 | 3.0 | 0.35 | 15 | 10 | 1.20:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-12-15 | 0.02 | 0.18 | 1.0 | 20 | 15±1.0 | 1.25:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-4-20 | 0.2 | 2.0 | 0.2 | 20 | 20 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-12-20 | 0.03 | 0.16 | 0.5 | 20 | 20 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-18-20 | 0.002 | 0.032 | 0.2 | 20 | 20±1.0 | 1.25:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-23-20 | 0.06 | 0.6 | 0.3 | 20 | 20 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-24-20 | 0.1 | 1.0 | 0.2 | 20 | 20±0.5 | 1.20:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-6-30 | 0.02 | 0.2 | 0.3 | 20 | 30 | 1.10:1 | 250 | 9-10 Weeks | Request a Quote |
| HDL-7-30/D | 0.2 | 0.5 | 0.2 | 20 | 30 | 1.10:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-7-30 | 0.1 | 0.5 | 0.3 | 20 | 30 | 1.25:1 | 250 | 9-10 Weeks | Request a Quote |
| HDL-7-30-50 | 0.1 | 0.5 | 0.25 | 20 | 30±1.0 | 1.25:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-8-30 | 0.4 | 1.0 | 0.2 | 20 | 30 | 1.15:1 | 400 | 9-10 Weeks | Request a Quote |
| HDL-9-30 | 0.8 | 1.0 | 0.1 | 25 | 30±1.0 | 1.10:1 | 500 | 9-10 Weeks | Request a Quote |
| HDL-9-30/B | 0.8 | 1.0 | 0.4 | 25 | 30 | 1.15:1 | 500 | 9-10 Weeks | Request a Quote |
| HDL-10-30 | 0.0015 | 0.08 | 0.15 | 25 | 30±1.0 | 1.10:1 | 750 | 9-10 Weeks | Request a Quote |
| HDL-11-30 | 0.0015 | 0.1 | 0.2 | 25 | 30 | 1.15:1 | 750 | 9-10 Weeks | Request a Quote |
| HDL-1-30 | 0.01 | 1.0 | 1.0 | 20 | 30 | 1.30:1 | 30 | 9-10 Weeks | Request a Quote |
| HDL-12-30 | 0.02 | 0.1 | 0.2 | 25 | 30 | 1.15:1 | 750 | 9-10 Weeks | Request a Quote |
| HDL-1-30/NMI | 0.01 | 1.0 | 1.0 | 20 | 30 | 1.30:1 | 30 | 9-10 Weeks | Request a Quote |
| HDL-13-30 | 0.002 | 0.032 | 0.3 | 25 | 30 | 1.10:1 | 1000 | 9-10 Weeks | Request a Quote |
| HDL-1-30/NMO | 0.01 | 1.0 | 1.0 | 20 | 30 | 1.30:1 | 30 | 9-10 Weeks | Request a Quote |
| HDL-14-30 | 0.0005 | 0.032 | 0.3 | 25 | 30 | 1.05:1 | 1500 | 9-10 Weeks | Request a Quote |
| HDL-2-30 | 0.01 | 1.0 | 1.0 | 20 | 30 | 1.30:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-14-30/S | 0.0005 | 0.032 | 0.15 | 25 | 30 | 1.15:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-3-30 | 0.00001 | 0.25 | 0.8 | 20 | 30 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-4-30 | 0.2 | 1.0 | 0.35 | 20 | 30 | 1.15:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-5-30 | 0.001 | 0.2 | 0.2 | 20 | 30 | 1.25:1 | 250 | 9-10 Weeks | Request a Quote |
| HDL-20-30 | 1.0 | 3.0 | 0.3 | 20 | 30 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-40-30 | 0.0001 | 1.0 | 1.2 | 20 | 30 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-26-30 | 0.02 | 0.5 | 0.9 | 20 | 30±1.0 | 1.20:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-26-30/S | 0.02 | 0.512 | 0.7 | 20 | 30±1.0 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-26-30-50 | 0.02 | 0.5 | 0.9 | 20 | 30±1.0 | 1.20:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-27-30 | 0.001 | 0.5 | 0.8 | 20 | 30 | 1.20:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-30-30 | 0.0005 | 0.0017 | 0.3 | 25 | 30 | 1.30:1 | 300 | 9-10 Weeks | Request a Quote |
| HDL-30-30/716 | 0.47 | 0.86 | 0.2 | 20 | 30 | 1.30:1 | 1000 | 9-10 Weeks | Request a Quote |
| HDL-30-30/BF | 0.47 | 0.86 | 0.2 | 20 | 30 | 1.20:1 | 250 | 9-10 Weeks | Request a Quote |
| HDL-30-30/NF | 0.47 | 0.86 | 0.2 | 20 | 30 | 1.20:1 | 250 | 9-10 Weeks | Request a Quote |
| HDL-32-30-7/16 | 0.5 | 1.0 | 0.2 | 20 | 30±0.25 | 1.25:1 | 500 | 9-10 Weeks | Request a Quote |
| HDL-33-30 | 0.6 | 6.0 | 0.7 | 15 | 30 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-35-30 | 0.00001 | 1.0 | 1.2 | 20 | 30±1.0 | 1.30:1 | 30 | 9-10 Weeks | Request a Quote |
| HDL-35-30/50 | 0.00001 | 1.0 | 1.2 | 20 | 30 | 1.30:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-15-30 | 0.0005 | 0.032 | 0.3 | 25 | 30 | 1.05:1 | 3000 | 9-10 Weeks | Request a Quote |
| HDL-36-30 | 0.00001 | 0.4 | 0.8 | 20 | 30 | 1.25:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-17-30 | 0.01 | 2.0 | 0.25 | 20 | 30 | 1.25:1 | 400 | 9-10 Weeks | Request a Quote |
| HDL-38-30 | 2.0 | 6.0 | 0.35 | 15 | 30±1.0 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-19-30 | 0.2 | 0.4 | 0.1 | 20 | 30 | 1.10:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-39-30 | 0.0001 | 0.01 | 0.1 | 25 | 30±1.0 | 1.25:1 | 1500 | 9-10 Weeks | Request a Quote |
| HDL-56-30 | 0.002 | 0.05 | 0.15 | 25 | 30 | 1.10:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-40-30/150 | 0.0001 | 1.0 | 1.2 | 20 | 30 | 1.30:1 | 150 | 9-10 Weeks | Request a Quote |
| HDL-57-30 | 0.5 | 1.0 | 0.2 | 20 | 30±1.0 | 1.15:1 | 500 | 9-10 Weeks | Request a Quote |
| HDL-42-30 | 0.001 | 2.0 | 1.25 | 18 | 30 | 1.35:1 | 50 | 9-10 Weeks | Request a Quote |
| HDL-59-30 | 0.001 | 0.5 | 0.9 | 20 | 30±1.0 | 1.20:1 | 30 | 9-10 Weeks | Request a Quote |
| HDL-43-30 | 0.001 | 0.1 | 0.25 | 25 | 30±1.0 | 1.15:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-65-30 | 0.03 | 0.512 | 0.7 | 20 | 30±1.0 | 1.30:1 | 175 | 9-10 Weeks | Request a Quote |
| HDL-44-30 | 0.01356 | 0.01356 | 0.1 | 20 | 30±1.0 | 1.15:1 | 1000 | 9-10 Weeks | Request a Quote |
| HDL-1-40 | 0.0001 | 1.0 | 1.0 | 20 | 40 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-45-30 | 0.01 | 2.0 | 1.25 | 18 | 30 | 1.35:1 | 75 | 9-10 Weeks | Request a Quote |
| HDL-46-30 | 0.01 | 0.1 | 0.25 | 20 | 30±1.0 | 1.10:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-47-30 | 0.8 | 2.4 | 0.2 | 20 | 30 | 1.30:1 | 200 | 9-10 Weeks | Request a Quote |
| HDL-48-30 | 0.8 | 2.4 | 0.2 | 20 | 30 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-49-30 | 0.8 | 2.8 | 0.3 | 20 | 30 | 1.30:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-50-30 | 1.0 | 2.0 | 0.2 | 20 | 30 | 1.30:1 | 600 | 9-10 Weeks | Request a Quote |
| HDL-51-30 | 2.0 | 4.0 | 0.3 | 15 | 30 | 1.35:1 | 300 | 9-10 Weeks | Request a Quote |
| HDL-53-30 | 0.03 | 0.09 | 0.25 | 20 | 30 | 1.10:1 | 100 | 9-10 Weeks | Request a Quote |
| HDL-53-30/500 | 0.03 | 0.09 | 0.15 | 25 | 30 | 1.10:1 | 500 | 9-10 Weeks | Request a Quote |
| HDL-54-30 | 0.088 | 0.108 | 0.2 | 25 | 30±1.0 | 1.20:1 | 150 | 9-10 Weeks | Request a Quote |
| HDL-55-30 | 0.1 | 0.2 | 0.25 | 20 | 30 | 1.10:1 | 200 | 9-10 Weeks | Request a Quote |
