Hybrids

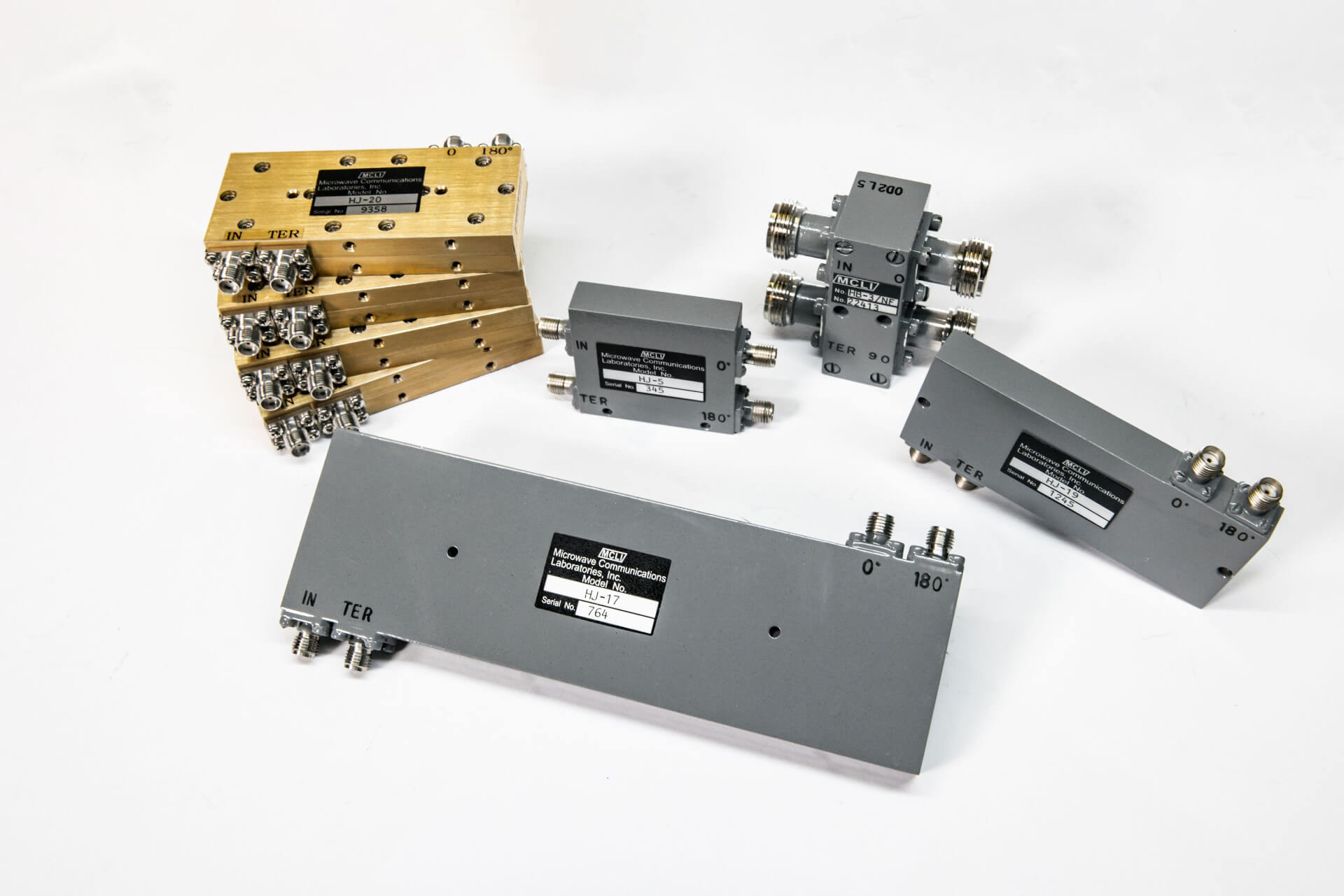

MCLI has developed a line of 3 dB Hybrids Couplers featuring broad bandwidths together with tight amplitude imbalances and phase imbalance specifications. Signal splitters, combiners, balanced mixers, image-rejection mixers, phase shifters, diplexers, switches, and antenna beam-forming networks are all functions of hybrid couplers that are employed in a variety of commercial and military applications.
Octave Band, Special Band, Multi Band and Ultra Wide-Band Models Available
Excellent Amplitude and Phase Tracking with Solid Build Construction
Many In-Stock Models and Custom Designs Available
Browse by category
Browse all Hybrids
Filters
Connector Series
Insertion Loss (dB)
Isolation (dB)
VSWR In/Out
Power Avg. (W)
Showing 1–100 of 278 results
| Part # | Frequency Range (GHz) | Insertion Loss (dB) | Isolation (dB) | VSWR In/Out | Amplitude Balance | Phase Balance | Power Avg. (W) | Lead Time | Notes | Action | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||||
| JL-17 | 0.00001 | 0.06 | 0.7 | 20 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-17/NF | 0.00001 | 0.06 | 0.7 | 20 | 1.30:1 | 0.2 | 2 | 3 | 4-6 Weeks | N/A | Request Quote |
| HCD-1 | 0.0001 | 0.05 | 0.5 | 30 | 1.30:1 | 0.2 | 6 | 500 | 9-10 Weeks | H6287-10 | Request Quote |
| HCD-2 | 0.0001 | 0.25 | 1 | 18 | 1.40:1 | 0.6 | 8 | 100 | 9-10 Weeks | H5675-10 | Request Quote |
| HJ-1/HP | 0.0001 | 0.05 | 0.5 | 30 | 1.30:1 | 0.5 | 6 | 500 | 4-6 Weeks | N/A | Request Quote |
| HCD-4 | 0.0002 | 0.035 | 0.4 | 20 | 1.30:1 | 0.2 | 5 | 50 | 9-10 Weeks | H6152-10 | Request Quote |
| HCD-5 | 0.0003 | 0.1 | 1 | 20 | 1.50:1 | 0.3 | 5 | 100 | 9-10 Weeks | H2979-10 | Request Quote |
| HCD-6 | 0.002 | 0.032 | 0.2 | 25 | 1.30:1 | 0.1 | 3 | 500 | 9-10 Weeks | H2979-10 | Request Quote |
| HCD-7 | 0.002 | 0.032 | 0.3 | 20 | 1.30:1 | 0.1 | 5 | 1,000 | 9-10 Weeks | H6286-10 | Request Quote |
| JL-15 | 0.002 | 0.2 | 1.2 | 20 | N/A | 0.3 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-16 | 0.002 | 0.2 | 0.75 | 30 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-25 | 0.002 | 0.4 | 2.5 | 15 | 1.50:1 | 0.3 | 5 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-16/NF | 0.002 | 0.2 | 0.75 | 20 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-25/NF | 0.002 | 0.4 | 2.5 | 15 | 1.50:1 | 0.3 | 5 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-11 | 0.003 | 0.03 | 0.8 | 20 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-11/NF | 0.003 | 0.03 | 0.8 | 20 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-14 | 0.005 | 0.4 | 1.5 | 20 | 1.50:1 | 0.4 | 6 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-24 | 0.005 | 0.2 | 1.4 | 25 | 1.50:1 | 0.4 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-14/NF | 0.005 | 0.4 | 1.5 | 20 | 1.50:1 | 0.4 | 6 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-24/NF | 0.005 | 0.2 | 1.4 | 25 | 1.50:1 | 0.4 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-1 | 0.01 | 0.02 | 0.8 | 20 | 1.30:1 | 0.2 | 2 | 1 | Stock - 1 Week | N/A | Request Quote |
| JL-19 | 0.01 | 1 | 2 | 20 | 1.50:1 | 0.5 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-1/NF | 0.01 | 0.02 | 0.8 | 20 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-19/NF | 0.01 | 1 | 2 | 20 | 1.50:1 | 0.5 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-1 | 0.0107 | 0.0107 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-1/NF | 0.0107 | 0.0107 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-2 | 0.02 | 0.02 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-2/NF | 0.02 | 0.02 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HB-56-200 | 0.02 | 0.5 | 0.6 | 20 | 1.40:1 | ±0.3 | ±5° | 200 | 9-10 Weeks | N/A | Request Quote |
| HB-56-200/SMAF | 0.02 | 0.5 | 0.6 | 20 | 1.40:1 | ±0.3 | ±5° | 200 | 9-10 Weeks | N/A | Request Quote |
| HB-56-200/NF | 0.02 | 0.5 | 0.6 | 20 | 1.40:1 | ±0.3 | ±5° | 200 | 9-10 Weeks | N/A | Request Quote |
| HB-96 | 0.02 | 0.52 | 0.6 | 20 | 1.30:1 | ±0.3 | ±5° | 250 | 9-10 Weeks | N/A | Request Quote |
| HCD-8 | 0.02 | 0.15 | 0.5 | 20 | 1.30:1 | 0.3 | 5 | 100 | 9-10 Weeks | H2052-10 | Request Quote |
| HCD-9 | 0.02 | 0.15 | 0.5 | 20 | 1.30:1 | 0.2 | 5 | 200 | 9-10 Weeks | H2977-10 | Request Quote |
| HCD-10 | 0.02 | 0.512 | 0.8 | 25 | 1.40:1 | 0.4 | 5 | 20 | 9-10 Weeks | H7267-102 | Request Quote |
| HCD-11 | 0.02 | 0.512 | 0.8 | 25 | 1.40:1 | 0.4 | 5 | 50 | 9-10 Weeks | H6751-102 | Request Quote |
| HCD-12 | 0.02 | 0.512 | 0.6 | 20 | 1.40:1 | 0.4 | 5 | 100 | 9-10 Weeks | H8837W-102 | Request Quote |
| HCD-13 | 0.02 | 1 | 1.3 | 20 | 1.40:1 | 0.4 | 5 | 20 | 9-10 Weeks | H8151-102 | Request Quote |
| JL-2 | 0.02 | 0.04 | 0.8 | 20 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-13 | 0.02 | 1 | 1.5 | 17 | 2.00:1 | 0.5 | 7 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-22 | 0.02 | 1 | 2.3 | 15 | 1.30:1 | 1 | 5 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-26 | 0.02 | 1.2 | 1.6 | 26 | 1.30:1 | 0.4 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-2/NF | 0.02 | 0.04 | 0.8 | 20 | 1.30:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-13/NF | 0.02 | 1 | 1.5 | 17 | 2.00:1 | 0.5 | 7 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-22/NF | 0.02 | 1 | 2.3 | 15 | 1.30:1 | 1 | 5 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-26/NF | 0.02 | 1.2 | 1.6 | 26 | 1.30:1 | 0.4 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-3 | 0.0214 | 0.0214 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-3/NF | 0.0214 | 0.0214 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-4 | 0.03 | 0.03 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-4/NF | 0.03 | 0.03 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-27S | 0.03 | 0.45 | 1.2 | 18 | 1.25:1 | 0.8 | 4 | 5 | 4-6 Weeks | N/A | Request Quote |
| HL-5 | 0.04 | 0.04 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-5/NF | 0.04 | 0.04 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-3 | 0.04 | 0.08 | 1 | 20 | 1.30:1 | 0.6 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-3/NF | 0.04 | 0.08 | 1 | 20 | 1.30:1 | 0.6 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-4 | 0.05 | 0.1 | 1 | 20 | 1.30:1 | 0.6 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-12 | 0.05 | 1 | 2.8 | 12 | 1.50:1 | 1 | 10 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-4/NF | 0.05 | 0.1 | 1 | 20 | 1.30:1 | 0.6 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-12/NF | 0.05 | 1 | 2.8 | 12 | 1.50:1 | 1 | 10 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-6 | 0.06 | 0.06 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-6/NF | 0.06 | 0.06 | 0.5 | 25 | 1.20:1 | 0.2 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-5 | 0.06 | 0.12 | 1 | 20 | 1.30:1 | 0.6 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-5/NF | 0.06 | 0.12 | 1 | 20 | 1.30:1 | 0.6 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-7 | 0.063 | 0.063 | 0.5 | 25 | 1.20:1 | 0.3 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-7/NF | 0.063 | 0.063 | 0.5 | 25 | 1.20:1 | 0.3 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-8 | 0.07 | 0.07 | 0.5 | 20 | 1.20:1 | 0.3 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-8/NF | 0.07 | 0.07 | 0.5 | 20 | 1.20:1 | 0.3 | 2 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-9 | 0.08 | 0.08 | 0.5 | 20 | 1.20:1 | 0.3 | 2.5 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-9/NF | 0.08 | 0.08 | 0.5 | 20 | 1.20:1 | 0.3 | 2.5 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-6 | 0.08 | 0.16 | 1.2 | 20 | 1.30:1 | 0.6 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-6/NF | 0.08 | 0.16 | 1.2 | 20 | 1.30:1 | 0.6 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| HCD-17 | 0.088 | 0.108 | 0.2 | 20 | 1.30:1 | 0.1 | 3 | 1,200 | 9-10 Weeks | H1846-10 | Request Quote |
| HB-25 | 0.1 | 0.512 | 0.5 | 20 | 1.30:1 | ±0.55 | ±5° | 200 | 9-10 Weeks | N/A | Request Quote |
| HB-97 | 0.1 | 1 | 0.65 | 20 | 1.40:1 | ±1.0 | ±5° | 50 | 9-10 Weeks | N/A | Request Quote |
| HB-25-2K | 0.1 | 0.5 | 0.35 | 18 | 1.30:1 | ±0.6 | ±3° | 2000 | 9-10 Weeks | N/A | Request Quote |
| HCD-18 | 0.1 | 0.5 | 0.8 | 25 | 1.40:1 | 0.4 | 5 | 100 | 9-10 Weeks | H7683-10 | Request Quote |
| HCD-19 | 0.1 | 0.5 | 1 | 20 | 1.35:1 | 0.3 | 5 | 200 | 9-10 Weeks | H7450-10 | Request Quote |
| HCD-20 | 0.1 | 1 | 1.3 | 20 | 1.30:1 | 0.4 | 5 | 50 | 9-10 Weeks | H7971-102 | Request Quote |
| JL-7 | 0.1 | 0.2 | 1.2 | 20 | 1.35:1 | 0.75 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-20 | 0.1 | 0.5 | 1.2 | 25 | 1.30:1 | 0.3 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-7/NF | 0.1 | 0.2 | 1.2 | 20 | 1.30:1 | 0.75 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-20/NF | 0.1 | 0.5 | 1.2 | 25 | 1.50:1 | 0.4 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-10 | 0.12 | 0.12 | 0.5 | 20 | 1.20:1 | 0.3 | 2.5 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-10/NF | 0.12 | 0.12 | 0.5 | 20 | 1.20:1 | 0.3 | 2.5 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-11 | 0.14 | 0.14 | 0.5 | 20 | 1.20:1 | 0.3 | 2.5 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-11/NF | 0.14 | 0.14 | 0.5 | 20 | 1.20:1 | 0.3 | 2.5 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-12 | 0.2 | 0.2 | 0.5 | 20 | 1.30:1 | 0.5 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| HL-12/NF | 0.2 | 0.2 | 0.5 | 20 | 1.30:1 | 0.5 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
| HB-70 | 0.2 | 0.5 | 0.2 | 20 | 1.30:1 | ±0.3 | ±5° | 1000 | 9-10 Weeks | N/A | Request Quote |
| HB-94 | 0.2 | 20 | N/A | 16 | 1.40:1 | ±0.3 | ±5° | 100 | 2-3 Weeks | N/A | Request Quote |
| HCD-22 | 0.2 | 0.4 | 0.2 | 20 | 1.40:1 | 0.2 | 5 | 400 | 9-10 Weeks | H3670-10 | Request Quote |
| HCD-23 | 0.2 | 0.4 | 0.3 | 20 | 1.30:1 | 0.5 | 5 | 2,500 | 9-10 Weeks | H7521-28 | Request Quote |
| HCD-25 | 0.2 | 1 | 0.3 | 20 | 1.30:1 | 0.35 | 5 | 750 | 9-10 Weeks | H7498-10 | Request Quote |
| HCD-25-20 | 0.2 | 1 | 1.2 | 20 | 1.40:1 | 0.4 | 5 | 20 | 9-10 Weeks | H8150-102 | Request Quote |
| HJ-1 | 0.2 | 0.4 | 0.2 | 20 | 1.40:1 | 0.5 | 5 | 200 | Stock - 1 Week | N/A | Request Quote |
| JL-8 | 0.2 | 0.4 | 1.5 | 20 | 1.50:1 | 1 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| JL-8/NF | 0.2 | 0.4 | 1.5 | 20 | 1.30:1 | 1 | 4 | 1 | 4-6 Weeks | N/A | Request Quote |
| HB-71 | 0.225 | 0.41 | 0.2 | 20 | 1.30:1 | ±0.3 | ±5° | 1200 | 9-10 Weeks | N/A | Request Quote |
| HCD-37 | 0.29 | 0.32 | 0.4 | 25 | 1.30:1 | 0.2 | 5 | 600 | 9-10 Weeks | N/A | Request Quote |
| HL-13 | 0.3 | 0.3 | 0.5 | 20 | 1.30:1 | 0.5 | 3 | 1 | 4-6 Weeks | N/A | Request Quote |
