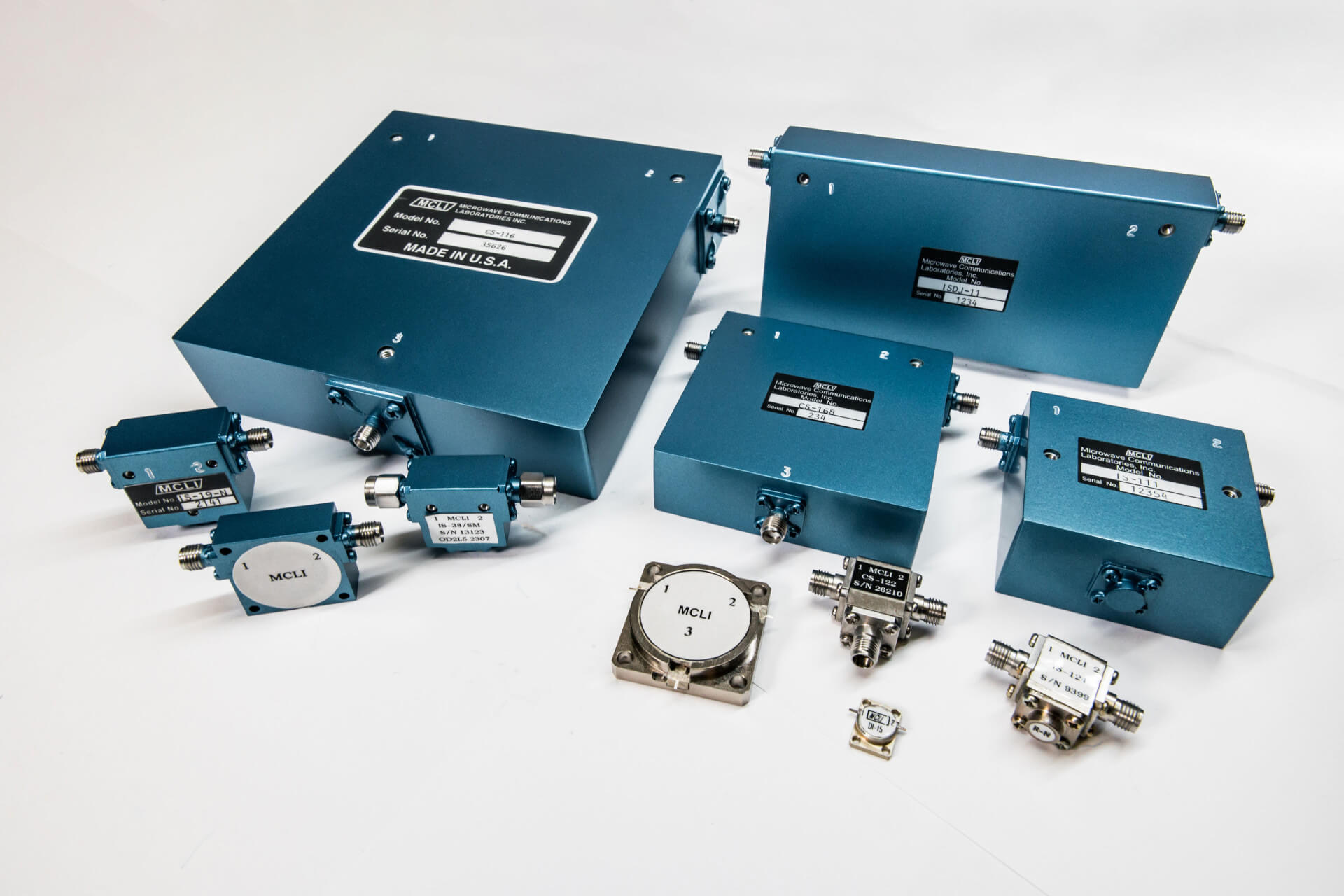

Circulator and Isolator

MCLI offers a complete variety of RF Isolator and RF Circulator solutions in drop-in, surface-mount, bespoke integrations, and waveguide configurations spanning the frequency band from 380 MHz to 40 GHz. These devices can be customized to meet precise mechanical, electrical, and operational specifications specified by the customer. The RF isolators and circulators that we offer are currently available in our inventory and are able to be expedited for shipment on the same day as the purchase order is received.
A

High Isolation and High Power Handling with Solid Build Construction

A

Custom Designs Available

A

Many In-Stock Models and Ready to Ship

Browse by category

Browse all Circulator and Isolator

Filters


Showing 1–100 of 1010 results

Part #Frequency Range (GHz)Insertion Loss (dB)Isolation (dB)VSWR In/OutPower Avg. (W)Lead TimeNotesAction
 Min  Max
CS-144/NF 2.06.01.0131.60:1203-4 WeeksN/A Request Quote
ISW-8 11.512.60.25211.20:133-4 WeeksN/A Request Quote
ISW-9 12.7513.50.25211.20:133-4 WeeksN/A Request Quote
ISW-9-TM 10.713.250.3201.25:133-4 WeeksN/A Request Quote
ISW-10 13.014.50.25211.20:133-4 WeeksN/A Request Quote
ISW-11 13.514.50.30211.20:133-4 WeeksN/A Request Quote
ISW-12 14.015.30.30211.20:133-4 WeeksN/A Request Quote
ISW-13 14.016.00.30201.25:133-4 WeeksN/A Request Quote
ISW-14 16.017.00.30211.20:133-4 WeeksN/A Request Quote
ISW-29 12.7514.50.20231.15:133-4 WeeksN/A Request Quote
ISW-1 7.17.80.2231.15:1103-4 WeeksN/A Request Quote
ISW-35 17.018.00.30211.20:133-4 WeeksN/A Request Quote
ISW-2 7.88.50.2231.15:1103-4 WeeksN/A Request Quote
ISW-18 5.97.1250.20251.13:153-4 WeeksN/A Request Quote
ISW-3 8.59.60.2221.20:153-4 WeeksN/A Request Quote
ISW-21 24.226.50.30201.25:133-4 WeeksN/A Request Quote
ISW-4 9.010.00.2221.18:153-4 WeeksN/A Request Quote
ISW-21/1 17.819.30.3211.19:123-4 WeeksN/A Request Quote
ISW-5 10.011.00.2221.18:153-4 WeeksN/A Request Quote
ISW-6 10.711.70.2221.18:153-4 WeeksN/A Request Quote
ISW-7 10.711.70.25211.20:133-4 WeeksN/A Request Quote
DI-15 8.511.50.5171.35:1N/A3-4 WeeksN/A Request Quote
DI-1 0.9350.960.4201.22:1N/A3-4 WeeksN/A Request Quote
DI-16 11.514.00.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-2 1.21.40.5181.30:1N/A3-4 WeeksN/A Request Quote
DI-17 13.016.50.5181.30:1N/A3-4 WeeksN/A Request Quote
DI-3 1.431.530.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-18 14.014.50.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-4 1.41.60.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-19 4.44.480.25201.22:1N/A3-4 WeeksN/A Request Quote
DI-5 1.62.00.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-6 2.02.30.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-7 2.32.50.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-7-15 2.32.50.4201.22:1N/A3-4 WeeksN/A Request Quote
DI-8 3.74.20.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-9 4.24.40.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-10 4.45.00.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-11 5.06.00.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-12 5.06.50.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-13 6.47.80.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-14 7.08.50.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-30 1.711.7850.25201.22:1N/A3-4 WeeksN/A Request Quote
ISW-31 27.529.50.40201.25:123-4 WeeksN/A Request Quote
DI-30/150 1.711.7850.35201.22:1N/A3-4 WeeksN/A Request Quote
ISW-31/1 27.530.00.3211.19:123-4 WeeksN/A Request Quote
DI-31 9.210.00.5201.22:1N/A3-4 WeeksN/A Request Quote
ISW-33 29.031.00.3211.20:1203-4 WeeksN/A Request Quote
DI-32 9.3710.10.5201.22:1N/A3-4 WeeksN/A Request Quote
ISW-34 32.040.00.5201.20:1103-4 WeeksN/A Request Quote
DI-33-15 4.85.00.4201.22:1N/A3-4 WeeksN/A Request Quote
DI-20 10.711.70.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-34 1.02.00.7161.40:1N/A3-4 WeeksN/A Request Quote
DI-21 9.510.50.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-35 10.9512.750.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-22 1.251.300.3201.22:1N/A3-4 WeeksN/A Request Quote
DI-37 13.213.40.5201.30:1N/A3-4 WeeksN/A Request Quote
DI-23 12.212.70.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-38 0.860.960.5201.20:1N/A3-4 WeeksN/A Request Quote
DI-24 1.621.660.3201.22:1N/A3-4 WeeksN/A Request Quote
DI-25 1.931.990.2231.20:1N/A3-4 WeeksN/A Request Quote
DI-26 0.930.970.5201.20:1N/A3-4 WeeksN/A Request Quote
DI-27 5.77.10.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-28 1.8051.880.25201.22:1N/A3-4 WeeksN/A Request Quote
ISW-32 17.722.00.3201.25:113-4 WeeksN/A Request Quote
DI-28-150 1.8051.880.35201.22:1N/A3-4 WeeksN/A Request Quote
ISW-28 14.014.50.2251.15:1503-4 WeeksN/A Request Quote
DI-29 2.52.70.5201.22:1N/A3-4 WeeksN/A Request Quote
ISW-30 29.531.50.4201.35:123-4 WeeksN/A Request Quote
DI-47 0.790.860.5181.30:1N/A3-4 WeeksN/A Request Quote
DI-49 2.04.00.7161.40:1N/A3-4 WeeksN/A Request Quote
DI-51 0.790.860.5181.30:1N/A3-4 WeeksN/A Request Quote
DI-52 9.810.20.5171.35:1N/A3-4 WeeksN/A Request Quote
DI-54 1.411.560.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-55 1.6851.8650.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-56 2.1852.4150.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-57 3.06.00.7161.40:1N/A3-4 WeeksN/A Request Quote
DI-58 4.08.00.7161.40:1N/A3-4 WeeksN/A Request Quote
DI-39 7.18.50.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-59 8.012.00.7171.45:1N/A3-4 WeeksN/A Request Quote
DI-40 7.257.750.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-60 1.171.170.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-41 7.98.40.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-61 4.44.450.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-42 7.258.40.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-62 5.65.650.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-43 6.47.20.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-44 12.7513.250.5201.22:1N/A3-4 WeeksN/A Request Quote
DI-45 14.415.350.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-66 17.719.70.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-82 5.45.90.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-67 23.524.50.6201.25:1N/A3-4 WeeksN/A Request Quote
DI-68 12.418.00.8171.35:1N/A3-4 WeeksN/A Request Quote
DI-69 24.024.31.0201.30:1N/A3-4 WeeksN/A Request Quote
DI-70 16.020.00.6181.30:1N/A3-4 WeeksN/A Request Quote
DI-71 0.8890.9160.4201.20:1N/A3-4 WeeksN/A Request Quote
DI-72 9.29.70.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-73 10.011.00.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-74 11.712.30.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-75 13.013.60.5201.25:1N/A3-4 WeeksN/A Request Quote
DI-76 18.419.00.6201.25:1N/A3-4 WeeksN/A Request Quote
