Bias Tee
A bias tee is a device with three connections that helps set the DC voltage for some electronic parts without affecting other parts. A bias tee is a device that lets two signals share the same line. The low-frequency port is used to set the bias. The high-frequency port allows radio signals to pass through but blocks the bias levels. The combined port connects to the device, which receives both the bias and radio signals.
Rugged coaxial models
Excellent RF isolation
Compact size
Browse all Bias Tee
Showing all 7 results
| Part # | Connector | Frequency Range (GHz) | Insertion Loss (dB) | VSWR Max. | Power Avg. (W) | Lead Time | Notes | Action | |
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| BT-000005X3-S | SMA Female | 0.000005 | 3 | 1.5 | 2.00:1 | 2 | 5-6 Weeks | N/A | Request Quote |
| BT-00003X40-292S | 2.92mm Female | 0.00003 | 40 | 3.5 | 2.50:1 | 2 | 5-6 Weeks | N/A | Request Quote |
| BT-00003X70-185S | 1.85mm | 0.00003 | 70 | 4 | 2.50:1 | 1 | 5-6 Weeks | N/A | Request Quote |
| BT-001X03-SP | SMA Female | 0.001 | 0.03 | 1 | 1.25:1 | 0 | 5-6 Weeks | N/A | Request Quote |

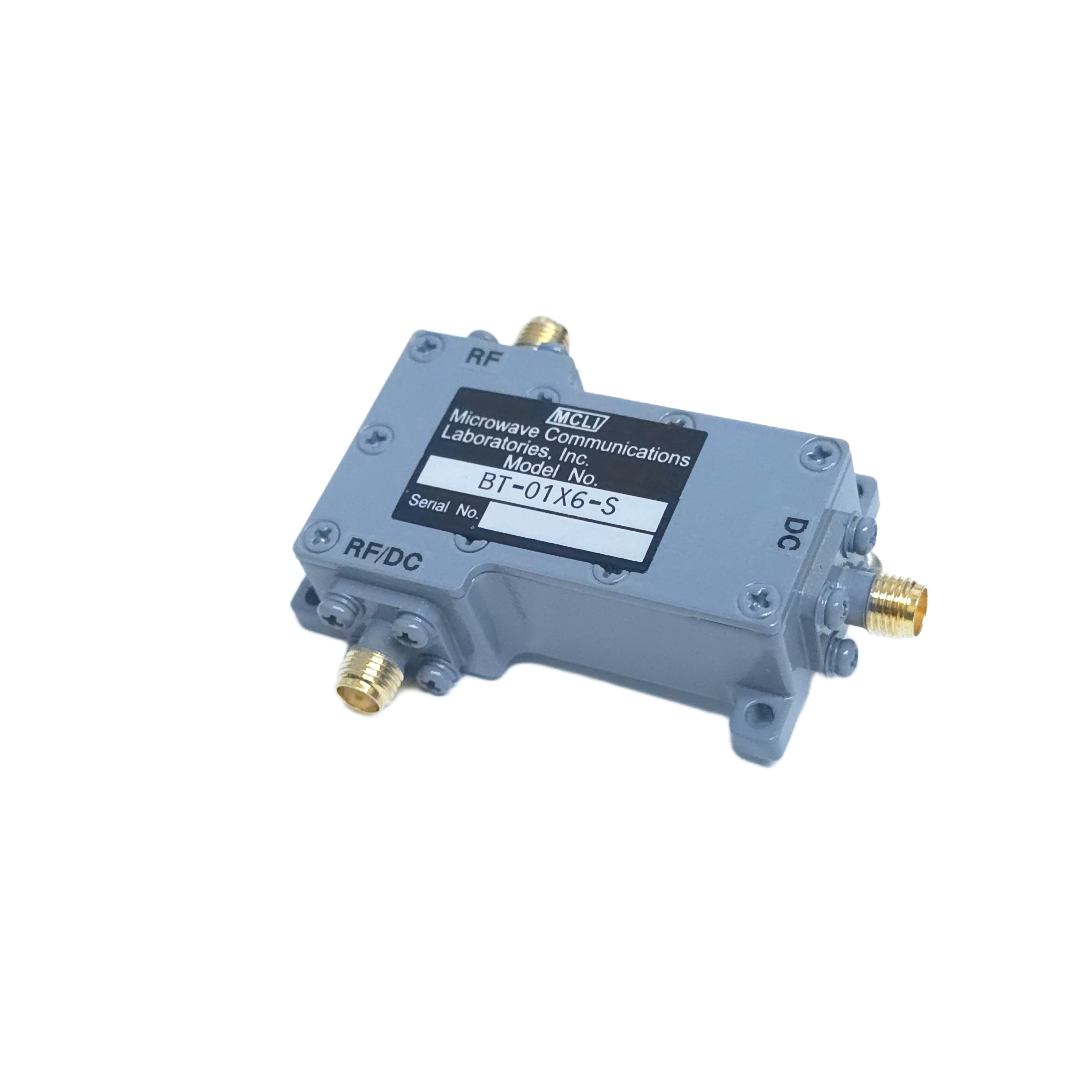

| BT-01X6-S | SMA Female | 0.01 | 6 | 1.2 | 1.50:1 | 10 | 5-6 Weeks | N/A | Request Quote |
| BT-0D3X18-S | SMA Female | 0.3 | 18 | 1.5 | 1.60:1 | 1 | 5-6 Weeks | N/A | Request Quote |
| BT-0D3X265-292S | 2.92mm Male | 0.3 | 26.5 | 1.8 | 1.80:1 | 1 | 5-6 Weeks | N/A | Request Quote |
