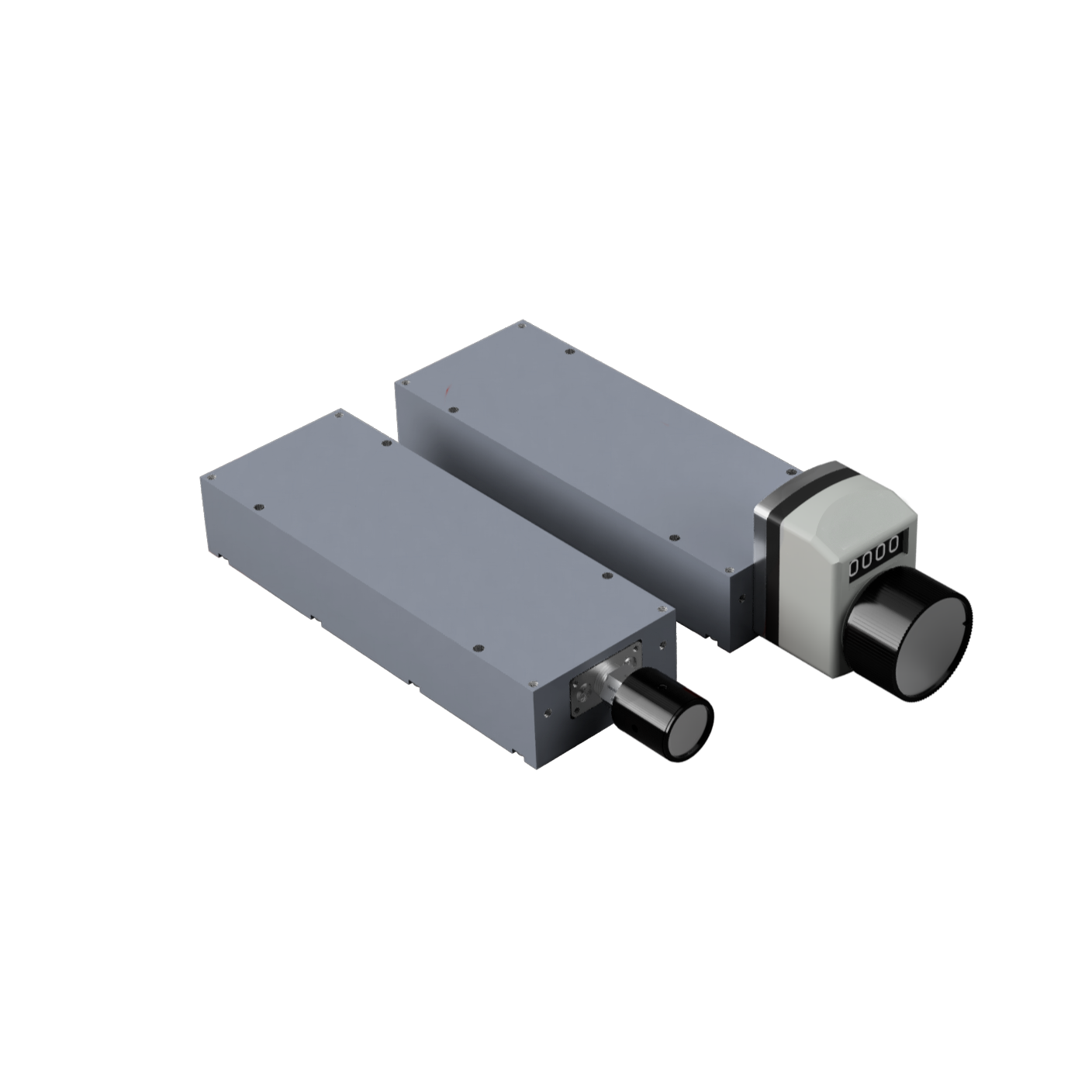

60° Phase Shifters
RF phase shifters have SMA or 2.92mm female connectors and can work with a wide range of frequencies from DC to 40 GHz. Passive RF phase shifters can handle an average power of 100 Watts and a maximum power of 3,000 Watts. They can adjust the phase by 60° every GHz. The highest insertion loss of these broadband RF phase shifters is between 0.5 dB and 2.5.
100 Watt of Power
Browse all 60° Phase Shifters
Filters
Attenuator Type
Insertion Loss (dB)
VSWR
Showing all 12 results
| Part # | Connector | Category | Frequency Range (GHz) | VSWR In/Out | Power Avg. (W) | Lead Time | Notes | Action | |
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| PX-601-55 | SMA Female | Adjustable Phase Shifters | DC | 2.3 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-602-55 | SMA Female | Adjustable Phase Shifters | DC | 4.3 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-603-55 | SMA Female | Adjustable Phase Shifters | DC | 8.2 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-604-55 | SMA Female | Adjustable Phase Shifters | DC | 12.7 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-605-55 | SMA Female | Adjustable Phase Shifters | DC | 18.6 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-606-55 | SMA Female | Adjustable Phase Shifters | DC | 26 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-601D-55 | SMA Female | Adjustable Phase Shifters | DC | 2.3 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-602D-55 | SMA Female | Adjustable Phase Shifters | DC | 4.3 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-603D-55 | SMA Female | Adjustable Phase Shifters | DC | 8.2 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-604D-55 | SMA Female | Adjustable Phase Shifters | DC | 12.7 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-605D-55 | SMA Female | Adjustable Phase Shifters | DC | 18.6 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
| PX-606D-55 | SMA Female | Adjustable Phase Shifters | DC | 26 | N/A | 100 | 3-4 Weeks | N/A | Request Quote |
